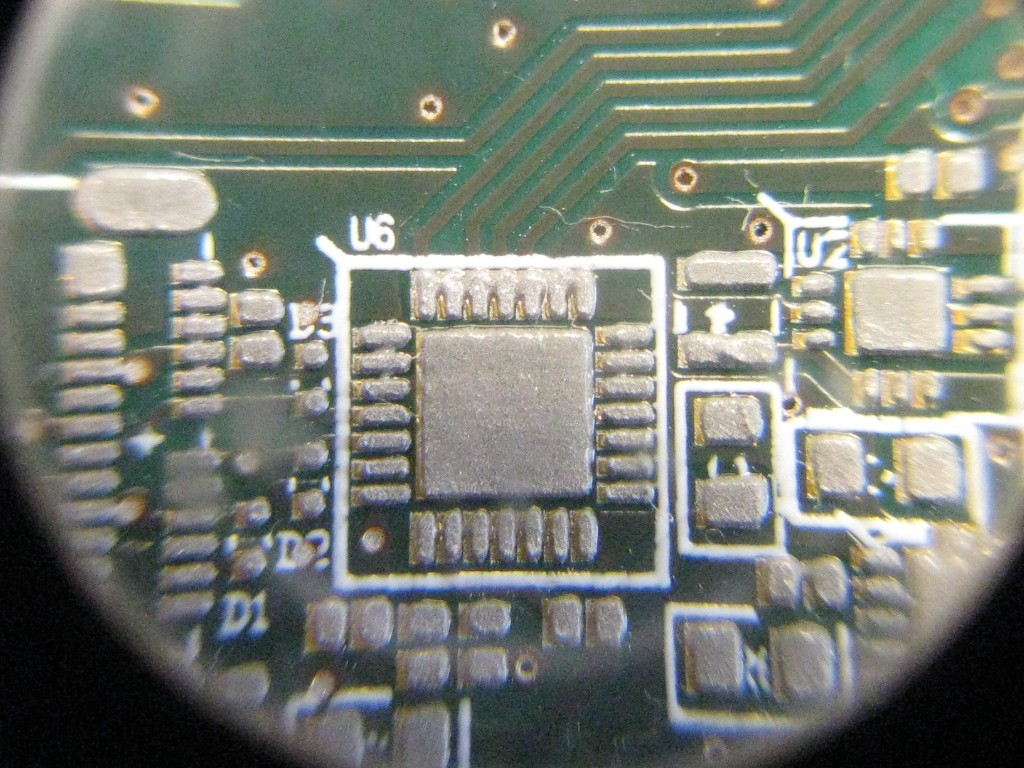

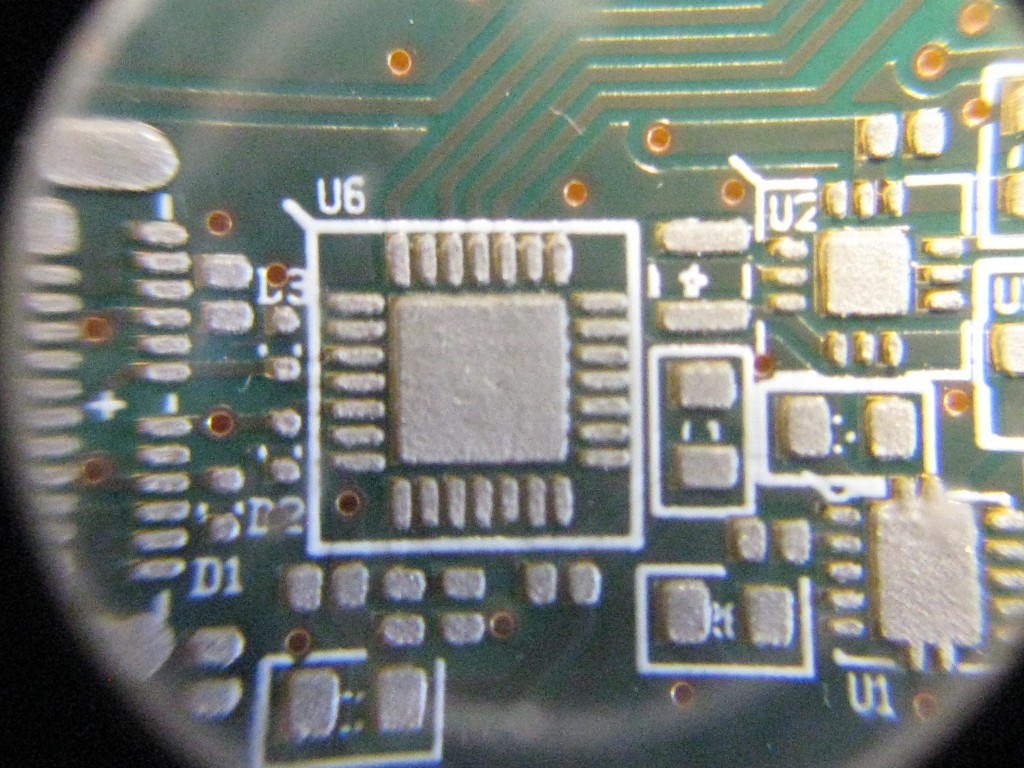

Richard Rasker: ... > My main problem is that even after hundreds of PCB's, the result is > unpredictable. Only 2 out of every 10 PCB's have a good crisp result, > like this: http://www.linetec.nl/electronics/paste_crisp.jpg > > The other PCB's often look like this: > http://www.linetec.nl/electronics/paste_mess.jpg ... This is what I noted: . there are more lint strands in the "mess" one . on some paste lands there is evidence of it sticking to the stencil . on U2 the paste don't align with the cu-lands . on the D2 andD3 silk, at the hole, there is some surplus paste, same on U6 bottom left hole inside the courtyard silk same to the left around the "+" silk sign some on the hole below U6's left side . overall on the "mess" one, the alignment is bad So, has there been movements and perhaps better cleaning will help ? Also, if you store the paste in the refrigerator, it will get more fluid when it heats up, so perhaps a more thick paste that you will allow to heat up before use to lessen the differents between pcb's. Regards, /Karl Hammar
